Default Route configuration on cisco Routers

Posted: June 7, 2015 in CCNA

We already have learned how to configure static route and Dynamic Route(RIPv1,RIPv2,EIGRP,OSPF) on Cisco Routers.Today here we learn how to configure Default Route on Cisco Router.Before configuring default routes you must know why we need to configure it and where we use it.The reason behind configuring default routes is that it has capacity to direct packets destined to networks not found in the routing table.Default Routes are configured mainly in STUB NETWORK.
STUB NETWORK:A network having only one exit interface or only one route to reach the destination.
When we configure default routes,it directs these packets to another router that has the route to destination.

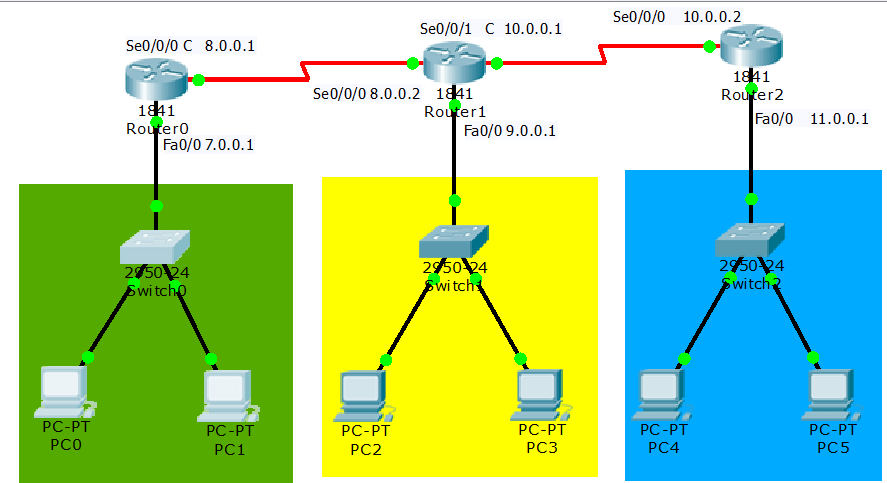

default route configuration



First Configure IP Addresses on Routers:

CONFIGURATION ON ROUTER R 0:

Router>enable

Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R0
R0(config)#int fa0/0
R0(config-if)#ip address 7.0.0.1 255.0.0.0
R0(config-if)#no shut



R0(config-if)#exit
R0(config)#int se0/0/0
R0(config-if)#ip address 8.0.0.1 255.0.0.0
R0(config-if)#clock rate 64000
R0(config-if)#no shut
R0(config-if)#



CONFIGURATION ON ROUTER R1:

Router>enable
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R1
R1(config)#int fa0/0
R1(config-if)#ip address 9.0.0.1 255.0.0.0
R1(config-if)#no shut



R1(config-if)#exit
R1(config)#int se0/0/0
R1(config-if)#ip address 8.0.0.2 255.0.0.0
R1(config-if)#no shut

R1(config-if)#exit



R1(config)#int se0/0/1
R1(config-if)#ip address 10.0.0.1 255.0.0.0
R1(config-if)#clock rate 64000
R1(config-if)#no shut



CONFIGURATION ON ROUTER R2:

Router>enable
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R2
R2(config)#int fa0/0
R2(config-if)#ip address 11.0.0.1 255.0.0.0
R2(config-if)#no shut



R2(config-if)#exit
R2(config)#int se0/0/0
R2(config-if)#ip address 10.0.0.2 255.0.0.0
R2(config-if)#no shut



NOW DEFAULT ROUTE CONFIGURATION :

Configure Default Route on R0:


R0(config)#ip route 0.0.0.0 0.0.0.0 8.0.0.2
R0(config)#ip route 0.0.0.0 0.0.0.0 8.0.0.2
R0(config)#ip route 0.0.0.0 0.0.0.0 8.0.0.2



Configure Default Route on R1:

R1(config)#ip route 0.0.0.0 0.0.0.0 8.0.0.1

R1(config)#ip route 0.0.0.0 0.0.0.0 10.0.0.2

Configure Default Route on R2:

R2(config)#ip route 0.0.0.0 0.0.0.0 10.0.0.1
R2(config)#ip route 0.0.0.0 0.0.0.0 10.0.0.1
R2(config)#ip route 0.0.0.0 0.0.0.0 10.0.0.1



CHECK DEFAULT ROUTE:

R0#show ip route
Codes: C – connected, S – static, I – IGRP, R – RIP, M – mobile, B – BGP
D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
E1 – OSPF external type 1, E2 – OSPF external type 2, E – EGP
i – IS-IS, L1 – IS-IS level-1, L2 – IS-IS level-2, ia – IS-IS inter area
* – candidate default, U – per-user static route, o – ODR
P – periodic downloaded static route

Gateway of last resort is 8.0.0.2 to network 0.0.0.0

C 7.0.0.0/8 is directly connected, FastEthernet0/0
C 8.0.0.0/8 is directly connected, Serial0/0/0
S* 0.0.0.0/0 [1/0] via 8.0.0.2





R1#show ip route
Codes: C – connected, S – static, I – IGRP, R – RIP, M – mobile, B – BGP
D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
E1 – OSPF external type 1, E2 – OSPF external type 2, E – EGP
i – IS-IS, L1 – IS-IS level-1, L2 – IS-IS level-2, ia – IS-IS inter area
* – candidate default, U – per-user static route, o – ODR
P – periodic downloaded static route

Gateway of last resort is 10.0.0.2 to network 0.0.0.0

C 8.0.0.0/8 is directly connected, Serial0/0/0
C 9.0.0.0/8 is directly connected, FastEthernet0/0
C 10.0.0.0/8 is directly connected, Serial0/0/1
S* 0.0.0.0/0 [1/0] via 10.0.0.2
[1/0] via 8.0.0.1



R2#show ip route
Codes: C – connected, S – static, I – IGRP, R – RIP, M – mobile, B – BGP
D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
E1 – OSPF external type 1, E2 – OSPF external type 2, E – EGP
i – IS-IS, L1 – IS-IS level-1, L2 – IS-IS level-2, ia – IS-IS inter area
* – candidate default, U – per-user static route, o – ODR
P – periodic downloaded static route

Gateway of last resort is 10.0.0.1 to network 0.0.0.0

C 10.0.0.0/8 is directly connected, Serial0/0/0
C 11.0.0.0/8 is directly connected, FastEthernet0/0
S* 0.0.0.0/0 [1/0] via 10.0.0.1



Note:S* shows route is default Route.
