telnet configuration on switch

Posted: March 30, 2015 in CCNA
Tags:

Learn how to configure telnet on a switch.We configure telnet services on a switch or a router to access it from anywhere remotely.Suppose you are in London and the switch you want to configure,manage and monitor is in New Delhi then you can monitor and manage your switch remotely through telnet without going physicaly to new delhi.So telnet is basically a remote login program which helps us to manage any device remotely.

Now see in below lab how to configure telnet on a switch.

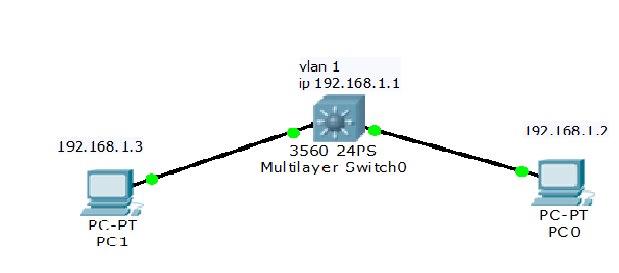

telnet configuration on switch

Configuration on Switch:

Switch>enable

Switch#config t

Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#hostname S1

S1(config)#interface vlan 1

S1(config-if)#ip address 192.168.1.1 255.255.255.0

S1(config-if)#no shut

S1(config-if)#exit

S1(config)#line vty 0 5

S1(config-line)#password redhat123

S1(config-line)#login

S1(config-line)#



Now see how to access a switch from a pc through telnet:

Packet Tracer PC Command Line 1.0

PC>telnet S1

PC>telnet 192.168.1.1

Trying 192.168.1.1 …Open

User Access Verification

Password:

S1>

S1>show arp
Protocol Address Age (min) Hardware Addr Type Interface
Internet 192.168.1.1 – 0001.43A9.275D ARPA Vlan1
Internet 192.168.1.3 11 00E0.F940.4904 ARPA Vlan1
