Learn little complex static routing configuration on router having serial port

Posted: April 2, 2015 in CCNA
Tags: , ,

Learn how to configure static routing when your router is connected with each other using serial port.Here to make you learn static routing configuration lab easily i have taken a little complex example and configured them step wise.If you are preparing for ccna certification exam this lab will help you to understand and configure static routing.

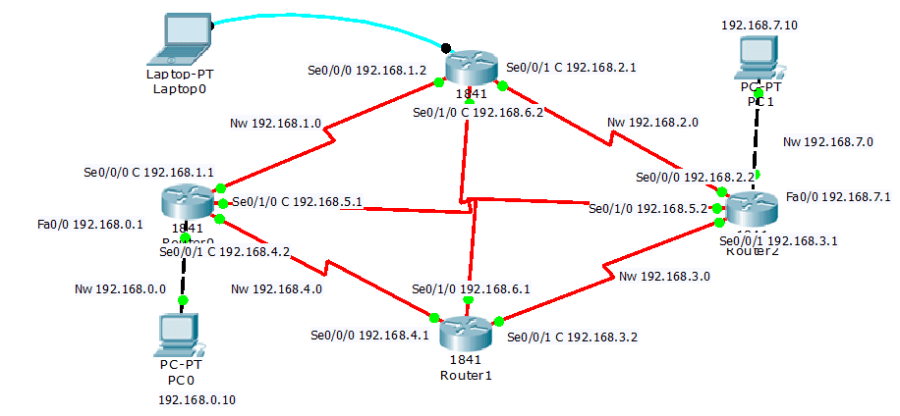

static routing using serial port



Now learn to configure this lab step wise:

— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

Router>en
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R4
R4(config)#int fa0/0
R4(config-if)#ip address 192.168.7.1 255.255.255.0
R4(config-if)#no shut

R4(config-if)#exit
R4(config)#int se0/0/1
R4(config-if)#ip address 192.168.3.1 255.255.255.0
R4(config-if)#no shut

R4(config-if)#exit
R4(config)#int se0/1/0
R4(config-if)#ip address 192.168.5.2 255.255.255.0
R4(config-if)#no shut

R4(config-if)#exit
R4(config)#int se0/0/0
R4(config-if)#ip address 192.168.2.2 255.255.255.0
R4(config-if)#no shut
— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

Router>en
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R3
R3(config)#int se0/0/1
R3(config-if)#ip address 192.168.3.2 255.255.255.0
R3(config-if)#clock rate 64000
R3(config-if)#no shut

R3(config-if)#exit
R3(config)#int se0/1/0
R3(config-if)#ip address 192.168.6.1 255.255.255.0
R3(config-if)#no shut

R3(config-if)#exit
R3(config)#int se0/0/0
R3(config-if)#ip address 192.168.4.1 255.255.255.0
R3(config-if)#no shut
— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

Router>enable
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R2
R2(config)#int se0/0/0
R2(config-if)#ip address 192.168.1.2 255.255.255.0
R2(config-if)#no shut

R2(config-if)#exit
R2(config)#int se0/1/0
R2(config-if)#ip address 192.168.6.2 255.255.255.0
R2(config-if)#clock rate 64000
R2(config-if)#no shut

R2(config-if)#exit
R2(config)#int se0/0/1
R2(config-if)#ip address 192.168.2.1 255.255.255.0
R2(config-if)#clock rate 64000
R2(config-if)#no shut
— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

Router>enable
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R1
R1(config)#int fa0/0
R1(config-if)#ip address 192.168.0.1 255.255.255.0
R1(config-if)#no shut

R1(config-if)#exit
R1(config)#int se0/0/1
R1(config-if)#ip address 192.168.4.2 255.255.255.0
R1(config-if)#clock rate 64000
R1(config-if)#no shut

R1(config-if)#exit
R1(config)#int se0/1/0
R1(config-if)#ip address 192.168.5.1 255.255.255.0
R1(config-if)#clock rate 64000
R1(config-if)#no shut

R1(config-if)#exit
R1(config)#int se0/0/0
R1(config-if)#ip address 192.168.1.1 255.255.255.0
R1(config-if)#clock rate 64000
R1(config-if)#no shut



Now start configuring route on each router using static routing method:

Configuration on Router R1:
R1(config-if)#exit
R1(config)#ip route 192.168.2.0 255.255.255.0 192.168.1.2
R1(config)#ip route 192.168.3.0 255.255.255.0 192.168.4.1
R1(config)#ip route 192.168.6.0 255.255.255.0 192.168.1.2
R1(config)#ip route 192.168.6.0 255.255.255.0 192.168.4.1
R1(config)#ip route 192.168.7.0 255.255.255.0 192.168.1.2
R1(config)#ip route 192.168.7.0 255.255.255.0 192.168.4.1
R1(config)#ip route 192.168.7.0 255.255.255.0 192.168.5.2



Configuration on Router R4:

R4(config)#ip route 192.168.1.0 255.255.255.0 192.168.2.1
R4(config)#ip route 192.168.4.0 255.255.255.0 192.168.3.2
R4(config)#ip route 192.168.6.0 255.255.255.0 192.168.2.1
R4(config)#ip route 192.168.6.0 255.255.255.0 192.168.3.2
R4(config)#ip route 192.168.0.0 255.255.255.0 192.168.2.1
R4(config)#ip route 192.168.0.0 255.255.255.0 192.168.3.2
R4(config)#ip route 192.168.0.0 255.255.255.0 192.168.5.1



Configuration on Router R3:

R3>enable
R3#config t
Enter configuration commands, one per line. End with CNTL/Z.
R3(config)#ip route 192.168.0.0 255.255.255.0 192.168.4.2
R3(config)#ip route 192.168.1.0 255.255.255.0 192.168.4.2
R3(config)#ip route 192.168.2.0 255.255.255.0 192.168.3.1
R3(config)#ip route 192.168.1.0 255.255.255.0 192.168.3.1
R3(config)#ip route 192.168.2.0 255.255.255.0 192.168.4.2
R3(config)#ip route 192.168.5.0 255.255.255.0 192.168.3.1
R3(config)#ip route 192.168.5.0 255.255.255.0 192.168.4.2
R3(config)#ip route 192.168.7.0 255.255.255.0 192.168.3.1
R3(config)#ip route 192.168.7.0 255.255.255.0 192.168.4.2



Configuration on Router R2:
R2>enable
R2#config t
Enter configuration commands, one per line. End with CNTL/Z.
R2(config)#ip route 192.168.0.0 255.255.255.0 192.168.1.1
R2(config)#ip route 192.168.0.0 255.255.255.0 192.168.2.2
R2(config)#ip route 192.168.4.0 255.255.255.0 192.168.1.1
R2(config)#ip route 192.168.4.0 255.255.255.0 192.168.2.2
R2(config)#ip route 192.168.3.0 255.255.255.0 192.168.1.1
R2(config)#ip route 192.168.3.0 255.255.255.0 192.168.2.2
R2(config)#ip route 192.168.7.0 255.255.255.0 192.168.2.2
R2(config)#ip route 192.168.7.0 255.255.255.0 192.168.1.1
R2(config)#ip route 192.168.5.0 255.255.255.0 192.168.1.1
R2(config)#ip route 192.168.5.0 255.255.255.0 192.168.2.2
R2(config)#ip route 192.168.5.0 255.255.255.0 192.168.2.2



STATIC ROUTING TROUBLESHOOTING COMMANDS:

R2#show ip route
Codes: C – connected, S – static, I – IGRP, R – RIP, M – mobile, B – BGP
D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
E1 – OSPF external type 1, E2 – OSPF external type 2, E – EGP
i – IS-IS, L1 – IS-IS level-1, L2 – IS-IS level-2, ia – IS-IS inter area
* – candidate default, U – per-user static route, o – ODR
P – periodic downloaded static route

Gateway of last resort is not set

S 192.168.0.0/24 [1/0] via 192.168.2.2
[1/0] via 192.168.1.1
C 192.168.1.0/24 is directly connected, Serial0/0/0
C 192.168.2.0/24 is directly connected, Serial0/0/1
S 192.168.3.0/24 [1/0] via 192.168.2.2
[1/0] via 192.168.1.1
S 192.168.4.0/24 [1/0] via 192.168.2.2
[1/0] via 192.168.1.1
S 192.168.5.0/24 [1/0] via 192.168.2.2
[1/0] via 192.168.1.1
C 192.168.6.0/24 is directly connected, Serial0/1/0
S 192.168.7.0/24 [1/0] via 192.168.2.2
[1/0] via 192.168.1.1
