Learn how to configure ripv2 on cisco router

Posted: April 4, 2015 in CCNA
Tags:

In this article we will learn how to configure ripv2. So basically this is a complete and step wise tutorial to make you learn configuring Routing Information Protocol version 2.Since we know RIPv2 support subnetting,that’s why i have taken an example with subnetted ip to show ripv2 configuration here.RIPv2 configuraton in Cisco Packet Tracer

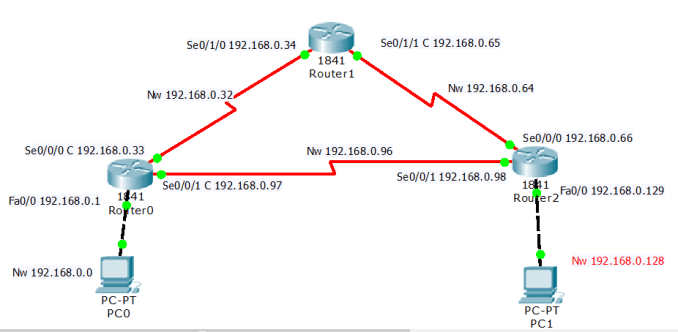

                                                                 Subnetting  192.168.0.0/27

ripv2 configuration





Let’s Learn the ripv2 configuration with subnetting:



Configuration on Router R1:

– System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

Router>enable
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R1
R1(config)#int fa0/0
R1(config-if)#ip address 192.168.0.1 255.255.255.224
R1(config-if)#no shut

R1(config-if)#exit
R1(config)#int se0/0/0
R1(config-if)#ip address 192.168.0.33 255.255.255.224
R1(config-if)#clock rate 64000
R1(config-if)#no shut

R1(config-if)#exit
R1(config)#int se0/0/1
R1(config-if)#ip address 192.168.0.97 255.255.255.224
R1(config-if)#clock rate 64000
R1(config-if)#no shut



Configuration on Router R2:

— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

Router>enable
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R2
R2(config)#int se0/1/0
R2(config-if)#ip address 192.168.0.34 255.255.255.224
R2(config-if)#no shutdown



R2(config-if)#exit
R2(config)#int se0/1/1
R2(config-if)#ip address 192.168.0.65 255.255.255.224
R2(config-if)#clock rate 64000
R2(config-if)#no shut



Configuration on Router R3:

— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

Router>enable
Router#config t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R3
R3(config)#int fa0/0
R3(config-if)#ip address 192.168.0.129 255.255.255.224
R3(config-if)#no shut

R3(config-if)#exit
R3(config)#int se0/0/1
R3(config-if)#ip address 192.168.0.98 255.255.255.224
R3(config-if)#no shut

R3(config-if)#exit
R3(config)#int se0/0/0
R3(config-if)#ip address 192.168.0.66 255.255.255.224

R3(config-if)#no shut



RIPv2 Routiing Configuration:

R1(config-if)#exit
R1(config)#router rip
R1(config-router)#version 2
R1(config-router)#network 192.168.0.0
R1(config-router)#network 192.168.0.32
R1(config-router)#network 192.168.0.97
R1(config-router)#exit

R2(config-if)#exit
R2(config)#router rip
R2(config-router)#version 2
R2(config-router)#network 192.168.0.32
R2(config-router)#network 192.168.0.64
R2(config-router)#exit

R3(config-if)#exit
R3(config)#router rip
R3(config-router)#version 2
R3(config-router)#network 192.168.0.64
R3(config-router)#network 192.168.0.96
R3(config-router)#network 192.168.0.128
R3(config-router)#exit
