EIGRP on IPv6 Configuration Lab using cisco packet tracer

Posted: 7 Mar 2018 in ipv6
Tags: , ,
EIGRP on IPv6 Configuration Lab(A Cisco Packet Tracer Lab
Configuring EIGRP on IPv6)

In this Tutorial I am going to show you how to configure EIGRP on IPv6. To show EIGRP configuration on IPv6 i have used cisco packet tracer software here. Even if you are new to IPv6  you can easily configure EIGRP on IPv6. I have shown step wise notes to configure EIGRP on IPv6. Following these few simple steps you can easily Configure EIGRP  using IPv6.

You can also Read:

IPv6 Basic Router Configuration Lab.

IPv6 Static Routing Configuration Lab

RIP on IPv6 Configuration Lab.

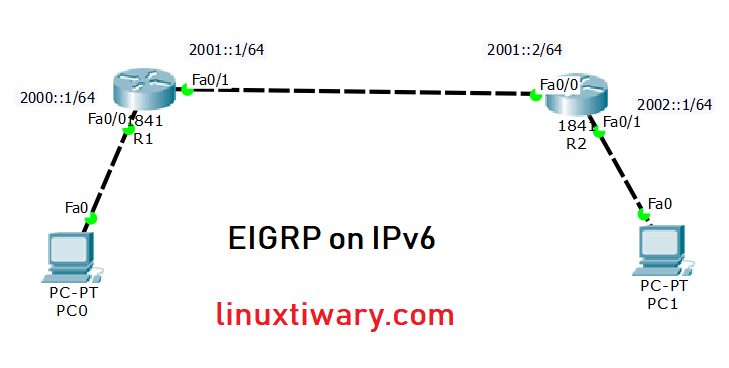

EIGRPv6

STEP 1: Assign IPv6 Address as Mentioned in Above Topology.



STEP 2: Configure EIGRPv6 on Router R1



R1>enable

R1#config t

Enter configuration commands, one per line. End with CNTL/Z.

R1(config)#ipv6 router eigrp 1

R1(config-rtr)#eigrp router-id 1.1.1.1

R1(config-rtr)#no shut

R1(config-rtr)#exit

R1(config)#int fa0/0

R1(config-if)#ipv6 add fe80::1 link-local

R1(config-if)#ipv6 eigrp 1

R1(config-if)#exit

R1(config)#int fa0/1

R1(config-if)#ipv6 eigrp 1

R1(config-if)#exit



STEP 3: Configure EIGRP on IPv6 on Router R2



R2>enable

R2#config t

Enter configuration commands, one per line. End with CNTL/Z.

R2(config)#ipv6 router eigrp 1

R2(config-rtr)#eigrp router-id 1.1.1.2

R2(config-rtr)#no shut

R2(config-rtr)#exit

R2(config)#int fa0/0

R2(config-if)#ipv6 eigrp 1



R2(config-if)#exit

R2(config)#int fa0/1

R2(config-if)#ipv6 add fe80::1 link-local

R2(config-if)#ipv6 eigrp 1

R2(config-if)#exit



Step 4: Verification of EIGRP configuration  on IPv6

Check  whether EIGRPv6 protocol configured on Router R1 or Not.



R1#show ipv6 protocol

IPv6 Routing Protocol is "connected"

IPv6 Routing Protocol is "static"

IPv6 Routing Protocol is "eigrp 1"

EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0

EIGRP maximum hopcount 100

EIGRP maximum metric variance 1

Interfaces:

FastEthernet0/0

FastEthernet0/1

Redistributing: eigrp 1

Maximum path: 16

Distance: internal 90 external 170



Check EIGRPv6 Route configured using IPv6
R1#show ipv6 route

IPv6 Routing Table - 6 entries

C 2000::/64 [0/0]

via ::, FastEthernet0/0

L 2000::1/128 [0/0]

via ::, FastEthernet0/0

C 2001::/64 [0/0]

via ::, FastEthernet0/1

L 2001::1/128 [0/0]

via ::, FastEthernet0/1

D 2002::/64 [90/30720]

via FE80::201:43FF:FEE4:C501, FastEthernet0/1

L FF00::/8 [0/0]

via ::, Null0





Check EIGRPv6 Routing Protocol configured using IPv6
R1#show ipv6 eigrp topology

IPv6-EIGRP Topology Table for AS 1/ID(1.1.1.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,

r - Reply status

P 2000::/64, 1 successors, FD is 28160

via Connected, FastEthernet0/0

P 2001::/64, 1 successors, FD is 28160

via Connected, FastEthernet0/1

P 2002::/64, 1 successors, FD is 30720

via FE80::201:43FF:FEE4:C501 (30720/28160), FastEthernet0/1



Check EIGRPv6  Traffic configured using IPv6
R1#show ipv6 eigrp traffic

IPv6-EIGRP Traffic Statistics for process 1

Hellos sent/received: 166/55

Updates sent/received: 2/3

Queries sent/received: 0/0

Replies sent/received: 0/0

Acks sent/received: 3/2

Input queue high water mark 1, 0 drops

SIA-Queries sent/received: 0/0

SIA-Replies sent/received: 0/0



Check EIGRPv6  Neighbors
R1#show ipv6 eigrp neighbors

IPv6-EIGRP neighbors for process 1

H Address Interface Hold Uptime SRTT RTO Q Seq

(sec) (ms) Cnt Num

0 Link-local address: Fa0/1 13 00:04:44 40 1000 0 4

FE80::201:43FF:FEE4:C501



Check EIGRPv6  Interfaces detail



R1#show ipv6 eigrp interfaces

IPv6-EIGRP interfaces for process 1

Xmit Queue Mean Pacing Time Multicast Pending

Interface Peers Un/Reliable SRTT Un/Reliable Flow Timer Routes

Fa0/0 0 0/0 1236 0/10 0 0

Fa0/1 1 0/0 1236 0/10 0 0
