Redistribution between EIGRP and Static Routing Protocol

Posted: 24 Feb 2018 in CCNP
Tags: ,

Redistribution between EIGRP and Static Routing Protocol

Here in this lab i will show how to configure redistribution between static routing and eigrp.For that configuration i have taken 3 router having total 4 networks.here middle router is configured with both EIGRP and Static Route.This is an static route and eigrp redistribution example lab shown using cisco packet tracer.

If you are preparing for ccnp routing exam you can study below redistribution labs:

Route Redistribution between EIGRP and OSPF.

Route Redistribution between RIP and EIGRP.

Route Redistribution between RIP and OSPF.

eigrp and static rouring

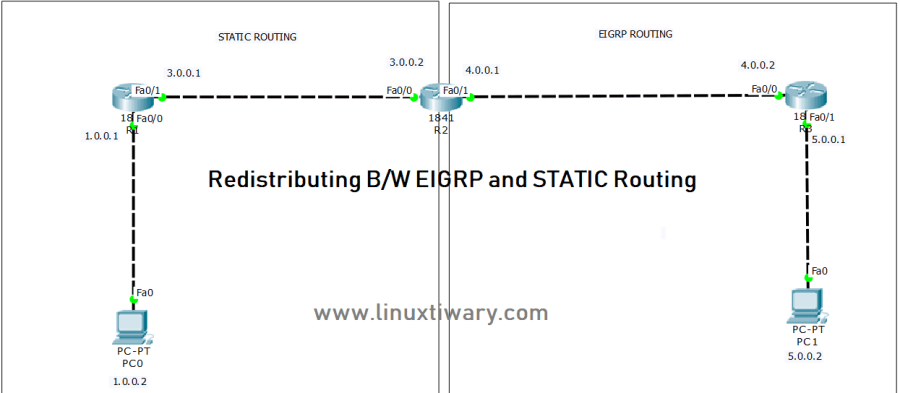

Step 1:Assign ip address on Router and PC as shown in above Diagram.



Step 2:Satic Routing Configuration on Router R1:



r1(config)#ip route 4.0.0.0 255.0.0.0 3.0.0.2

r1(config)#ip route 5.0.0.0 255.0.0.0 3.0.0.2

r1(config)#exit



Step 3: Static Routing  and EIGRP configuration on Router R2:



r2(config)#ip route 1.0.0.0 255.0.0.0 3.0.0.1

r2(config)#router eigrp 1

r2(config-router)#network 4.0.0.0

r2(config-router)#exit



Step 4:EIGRP configuration on Router R3:



r3(config)#router eigrp 1

r3(config-router)#network 4.0.0.0

r3(config-router)#network 5.0.0.0



Step 5: Redistribute Static Route in EIGRP



r2(config)#router eigrp 1

r2(config-router)#redistribute static

r2(config-router)#redistribute connected

r2(config-router)#exit

r2(config)#do write

Building configuration…

[OK]

r2(config)#



Step 6: Redistribution Route Verification



r2#show ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP


S 1.0.0.0/8 [1/0] via 3.0.0.1

C 3.0.0.0/8 is directly connected, FastEthernet0/0

C 4.0.0.0/8 is directly connected, FastEthernet0/1

D 5.0.0.0/8 [90/30720] via 4.0.0.2, 00:03:39, FastEthernet0/1



redistribution lab
