Configure verify and troubleshoot PAGP(Port Aggregation protocol) also called ether channel

Posted: March 19, 2017 in CCNA
Tags: , , ,

In this tutorial we will learn about PAGP.We will learn how to configure PAGP and how to verify and troubleshoot it after configuration. But before that we must know what PAGP is.PAgP is actually a Cisco Proprietary Protocol which is known as Port Aggregation Protocol which is used to combine two or more physical ports in to a single logical port or you can say it as a EtherChannel.

As we all Know there are total 3 Methods to Configure EtherChannel in cisco switch.



1.STATIC ( Configure it Manually or use below both protocols)
2.PAgP(Port Aggregation Protocol)
3.LACP(Link Aggregation Control Protocol)
Here in this tutorial we will learn to configure Etherchannel using PAgP .

NOTE:in real production environment we can either use PAGP or LACP.



Now going to configure PAgP EtherChannel in cisco switch:

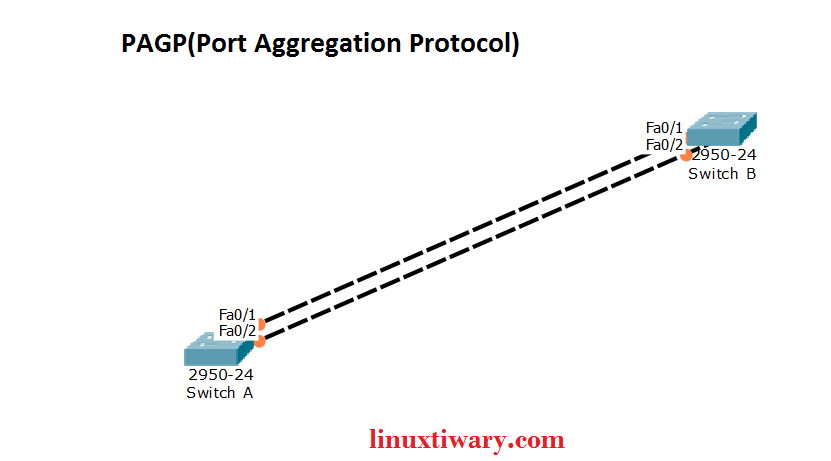

PAgp

STEP 1: Going to Switch A and configure PAgP.
SWITCHA(config)#host switchA

switchA(config)#int range fa0/1-2

switchA(config-if-range)#channel-group 1 mode desirable





STEP 2: Now go to Switch B and Configure PAgP



Switch(config)#host switchB

switchB(config)#int range fa0/1-2

switchB(config-if-range)#channel-group 1 mode desirable





STEP 3: Verify EtherChannel PORT Configuration
switchA#show etherchannel summary

Flags: D - down P - in port-channel

I - stand-alone s - suspended

H - Hot-standby (LACP only)

R - Layer3 S - Layer2

U - in use f - failed to allocate aggregator

u - unsuitable for bundling

w - waiting to be aggregated

d - default port

Number of channel-groups in use: 1

Number of aggregators: 1

Group Port-channel Protocol Ports

------+-------------+-----------+----------------------------------------------

1 Po1(SU) PAgP Fa0/1(P) Fa0/2(P)





switchA#show etherchannel load-balance

EtherChannel Load-Balancing Operational State (src-mac):

Non-IP: Source MAC address

IPv4: Source MAC address

IPv6: Source MAC address

switchA#
