Learn how to configure NTP Server and NTP Client on cisco Router

Posted: November 30, 2015 in CCNA
Tags: , , ,

Whenever we talks about cisco routers and how to set clock or accurate time on routers it becomes so important because a variety of services depend on it. We need to monitor our routers and secure our routers through server configuration.We use to configure syslog server for monitoring routers log and incident happening over routers.The logging service shows each log entry with the date and time and all details which are directly or indirectly related to NTP Server.It becomes very critical if you’re trying to track a specific incident or troubleshoot a problem.

 Cisco routers have two types of clocks :

  1. A battery-powered hardware clock, referenced as the ‘calendar’ in the IOS CLI, and
  2. a software clock, referenced as the ‘clock’ in the IOS CLI.

The software clock is the primary source for time data and runs from the moment the system is up and running. The software clock can be updated from a number of sources.

Now to show ntp server-client configuration i have taken below topology diagram.

 ntp client server configuration

Step-1:First configure ip address on routers.

Router>enable

Router#config t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#host r1

r1(config)#int fa0/0

r1(config-if)#ip add 1.0.0.1 255.0.0.0

r1(config-if)#no shut

r1(config-if)#

r1(config-if)#exit



Step-2: Now see time before NTP Configuration

r1#show clock

*0:8:25.144 UTC Mon Mar 1 1993

r1#

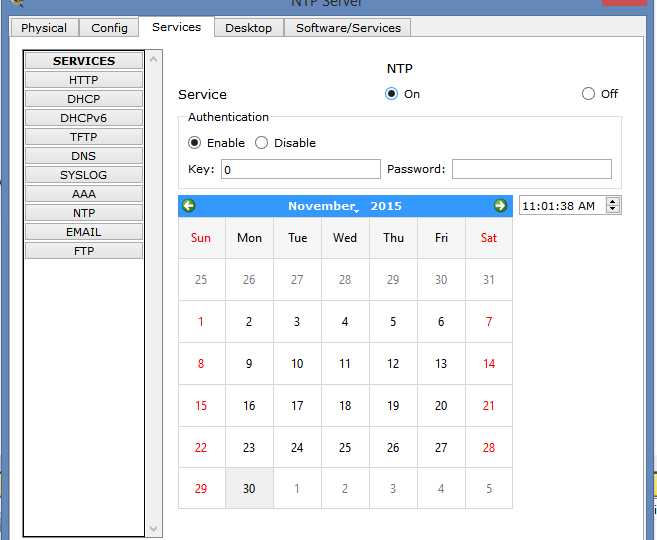

Step-3:Now going to configure NTP Server

ntp client on cisco router

Step-4:Now again go to Router and setup NTP Client.

r1#config t

Enter configuration commands, one per line. End with CNTL/Z.

r1(config)#ntp server 1.0.0.2

r1(config)#exit



Step-5:Now again see the time again to confirm NTP Configured or not.

r1#show clock

*11:39:49.172 UTC Tue Nov 24 2015

r1#



r1#show ntp status

Clock is synchronized, stratum 2, reference is 1.0.0.2

nominal freq is 250.0000 Hz, actual freq is 249.9990 Hz, precision is 2**19

reference time is D9DC8200.000000DB (11:31:12.219 UTC Mon Nov 30 2015)

clock offset is 0.00 msec, root delay is 0.00 msec

root dispersion is 0.02 msec, peer dispersion is 0.02 msec.
