Learn little tricky static routing

Posted: March 25, 2015 in CCNA
Tags:

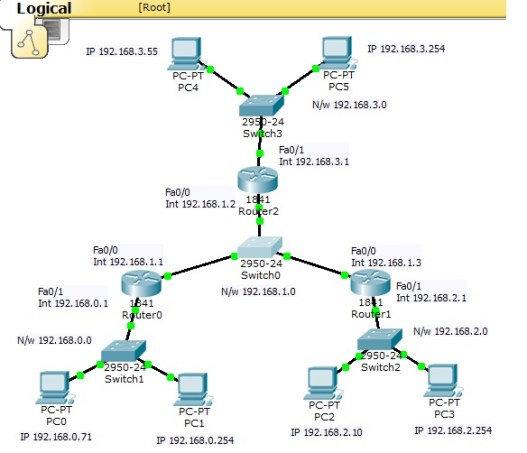

Here in this article i am going to show you how to configure static routing.To show you how to configure static routing i have taken an example lab you can see in below image.





static routingNow Lets see configuration step wise:

— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no

Press RETURN to get started!

Router>enable

Router#config t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#hostname R1

R1(config)#int fa0/1

R1(config-if)#ip address 192.168.0.1 255.255.255.0

R1(config-if)#no shut

R1(config-if)#exit

R1(config)#int fa0/0

R1(config-if)#ip address 192.168.1.1 255.255.255.0

R1(config-if)#no shut





— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no

Press RETURN to get started!

Router>enable

Router#config t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#hostname R2

R2(config)#int fa0/1

R2(config-if)#ip address 192.168.3.1 255.255.255.0

R2(config-if)#no shut

R2(config-if)#exit

R2(config)#int fa0/0

R2(config-if)#ip address 192.168.1.2 255.255.255.0

R2(config-if)#no shut





— System Configuration Dialog —

Continue with configuration dialog? [yes/no]: no

Press RETURN to get started!

Router>en

Router#config t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#hostname R3

R3(config)#int fa0/1

R3(config-if)#ip address 192.168.2.1 255.255.255.0

R3(config-if)#no shut

R3(config-if)#exit

R3(config)#int fa0/0

R3(config-if)#ip address 192.168.1.3 255.255.255.0

R3(config-if)#no shut



R1(config)#ip route 192.168.2.0 255.255.255.0 192.168.1.3

R1(config)#ip route 192.168.3.0 255.255.255.0 192.168.1.2



R3(config)#ip route 192.168.0.0 255.255.255.0 192.168.1.1

R3(config)#ip route 192.168.3.0 255.255.255.0 192.168.1.2



R2(config)#ip route 192.168.0.0 255.255.255.0 192.168.1.1

R2(config)#ip route 192.168.2.0 255.255.255.0 192.168.1.3
